Standard seals

Standard seals for hydraulics, pneumatics, valves and maintenance.

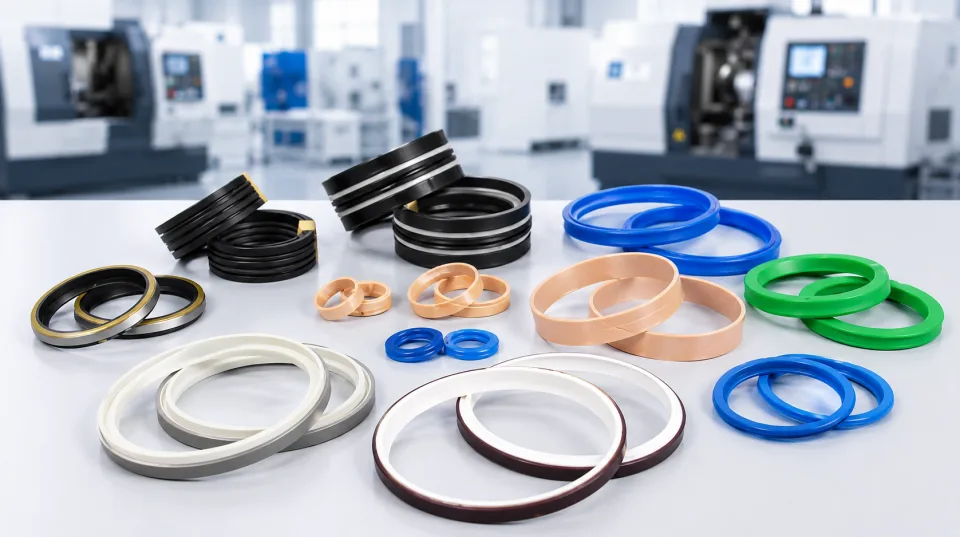

Zestaw kolorowych uszczelnień standardowych w różnych rozmiarach, ułożonych na jasnym blacie na tle rozmytego zaplecza produkcyjnego.

Hydraulics and pneumatics

Standard seals

Standard seals for hydraulics, pneumatics, valves and maintenance.

Commercial offer

Standard seals

Standard seals include commonly used solutions for hydraulics, pneumatics, valves, pumps, cylinders and maintenance. We help select the profile type, material and a replacement for worn, unavailable or units working in more demanding conditions.

Scope: hydraulics, pneumatics, valves
Typy: O-rings, profiles, rings
Mode: selection and supply

O-rings, wiper rings, guide rings, support rings, piston and rod seals.

Material selection for oil, air, water, chemicals, temperature, pressure and type of motion.

Support in identifying the profile based on dimensions, a photo, catalogue number or worn sample.

Seal groups

Hydraulic piston seals Hydraulic piston seals for cylinders and systems where working chambers must be separated and stable pressure operation maintained. Hydraulic rod seals Hydraulic rod seals protecting the system from medium leakage on the extending rod side. Wipers Wipers protecting cylinders from dust, water, mud and particles carried in by the moving rod. Guide rings Guide rings for carrying side loads, stabilizing the piston or rod and protecting mating surfaces. Guide tapes Guide tapes for cutting piston and rod guide rings in hydraulic and pneumatic cylinders. Sealing cords Rubber, silicone and PTFE sealing cords for static joints, covers, flaps, hatches and non-standard gaskets. Static seals Static seals for fixed joints, flanges, covers, fittings and grooves without working motion. Rotary shaft seals Selection and supply of rotary shaft seal elements according to dimensions, material and operating conditions. Hydraulic piston-rod seals Hydraulic piston-rod seals for housings where one profile type can work in several positions of the system. Pneumatic piston seals Pneumatic piston seals for compressed-air cylinders, focused on low friction and smooth movement. Pneumatic rod seals Pneumatic rod seals for air cylinders where light operation and contamination protection are important. Retaining rings Retaining rings for locating elements in grooves, limiting axial movement and securing the housing.

Product range

piston, rod, compact and symmetric seals
guide, wiper, support and backup rings
O-rings, X-rings, cords, guide strips and static seals
seals for rotary shafts, fittings, flanges and process systems

When to inquire

in case of a cylinder, pump, valve, distributor or gearbox failure
when the original part number is unavailable or does not ensure correct selection
when material must be selected for an atypical medium, temperature or pressure
when replacing an old profile with an available standard or a solution offering better service life

Process

How we handle an inquiry

01 Profile identification

We determine the seal type based on dimensions, a photo, a catalogue number or the worn part.

02 Operating conditions

We check the medium, pressure, temperature, type of motion and assembly requirements.

03 Replacement selection

We indicate a standard profile, material or direction for a custom solution if the standard is insufficient.

04 Delivery and support

We prepare an offer, lead time and information needed for safe installation or further verification.

Materials

Material selection for medium and temperature

NBR

mineral oils, hydraulics, pneumatics and standard industrial applications

FKM

higher temperatures, fuels, oils and aggressive media

EPDM

water, steam, glycols and installations requiring aging resistance

PTFE

low coefficient of friction, chemicals and applications with elevated requirements

Technical selection

Data needed for inquiry

If you do not have complete data, send a photo of the part, groove dimensions or operating conditions. We will help determine the missing parameters.

device type and seal operating location
dimensions of the groove, shaft, piston or worn element
working medium, temperature, pressure and type of motion
photo of the profile, catalogue number or manufacturer marking, if available
information whether the goal is fast delivery of a standard, a replacement or improved durability

FAQ

Frequently asked questions

What is included in standard seals?

This group includes, among others, O-rings, piston and rod seals, wipers, guide and support rings, static seals and solutions for rotary shafts and fittings.

Can a seal be selected without a catalogue number?

Yes. In many cases dimensions of the groove, a profile photo or worn part are sufficient. Information about the medium, temperature, pressure and type of operation is also helpful.

When to choose a standard or a CNC-turned seal?

Choose a standard when an available profile and dimension fit the application. CNC turning is better for atypical dimensions, urgent repairs, modernizations or when a standard profile does not solve the problem.

Does one sealing material fit every application?

No. Material is selected based on medium, temperature, pressure, speed of motion and working environment. Therefore, provide operating conditions in an inquiry, not just dimensions.

Offer inquiry

Need a quote or technical selection?

Send dimensions, medium and operating conditions. We will prepare material selection guidance and execution options.

Request a quote
