Cross-sections of CNC-turned seals

Interactive catalog of CNC-turned seal profiles available from Kragum.

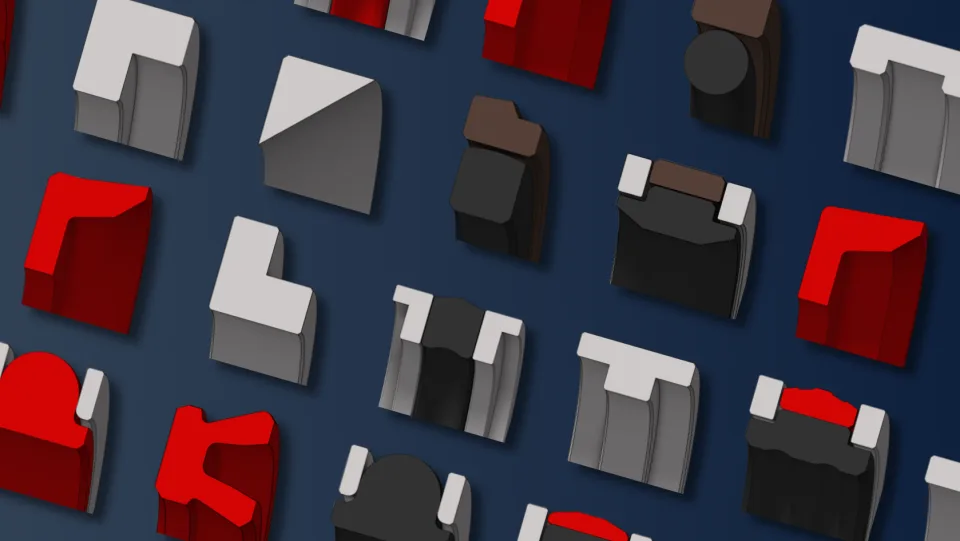

Wizualizacja przekrojów profili uszczelnień toczonych CNC w różnych kształtach, ułożonych na ciemnoniebieskim tle.

Turned seals

Cross-sections of CNC-turned seals

Interactive catalog of CNC-turned seal profiles available from Kragum.

Product offering

Cross-sections of CNC-turned seals

The cross-section overview helps to preliminarily select a turned seal profile. Final selection depends on the application, gland dimensions, medium and system parameters.

Profile
174 cross-sections
Kategorie
8 functional groups
Mode
custom CNC solutions
01

Profiles for piston, rod, wiper, static, rotary and guiding applications.

02

Geometry can be modified for a specific gland or atypical operating conditions.

03

Profile selection for hydraulics, pneumatics, rotary motion and special applications.

How to use the catalog

  • select the seal function in the system: piston, rod, wiper, guiding or rotary motion
  • compare the visible cross-section with the existing seal or the required gland
  • provide the profile code, dimensions and operating conditions (medium, pressure, operating temperature, single- or double-acting) to confirm material

What we confirm during selection

  • diameters, gland width and single- or double-acting operation
  • pressure, temperature, medium and movement speed
  • profile material: PU, NBR, FKM, PTFE or a special solution

Process

How we handle an inquiry

01 Choose function

First determine whether the profile works on the piston, rod, as a wiper, static, rotary, back-up or guiding element.

02 Compare the cross-section

Match the profile code with the existing seal, gland or expected operating geometry.

03 Provide conditions

Dimensions, medium, temperature, pressure, motion and expected material are needed for confirmation.

04 Confirm production

Based on this we select the profile, material and any geometry changes for the specific operating conditions.

View cross-sections in 3D visualization Select a profile and view a 270° solid with colored elements and adjustable diameter.

Profile catalog

CNC machined seal profiles

Filter cross-sections by profile function or enter the profile code, e.g. PLMR01 or R01.

364 visible profiles
Wipers

Profiles protecting the system from dirt, moisture and dust.

View group page
Rod seals

Seals for reciprocating motion on the rod side.

View group page
Piston seals

Profiles for sealing the piston and separating cylinder chambers.

View group page
Symmetric

Profiles for bidirectional operation and simpler mounting layouts.

View group page
Static

Profiles for connections without working motion or with minimal movement.

View group page
Rotary

Seals for shafts, drives and systems with rotary motion.

View group page
Guide rings

Guide and spacer elements limiting metal-to-metal contact.

View group page
3D visualization

Profile

Function
Inquiry data
profile code, groove dimensions, medium, temperature, pressure and quantity
Request a quote

Technical selection

Data needed for inquiry

If you do not have complete data, send a photo of the part, groove dimensions or operating conditions. We will help determine the missing parameters.

  1. profile function: piston, rod, wiper, guiding, static or rotary motion
  2. diameters, gland width, clearance and available mounting space
  3. medium, temperature, pressure, movement speed and number of cycles
  4. photo, sketch or cross-section code from the profile catalog

FAQ

Frequently asked questions

Is the profile code sufficient for a quote?

The profile code speeds up selection, but dimensions, material or operating conditions and quantity are also required for a quote.

Can the cross-section be modified?

Yes. For CNC-turned seals the geometry can be adapted to a specific gland if operating conditions and material allow.

Do you select the material for the profile?

Yes. Based on the medium, temperature, pressure and type of motion we recommend the material and execution variant.

Offer inquiry

Need a quote or technical selection?

Send dimensions, medium and operating conditions. We will prepare material selection guidance and execution options.

Request a quote
