CNC-cut seals

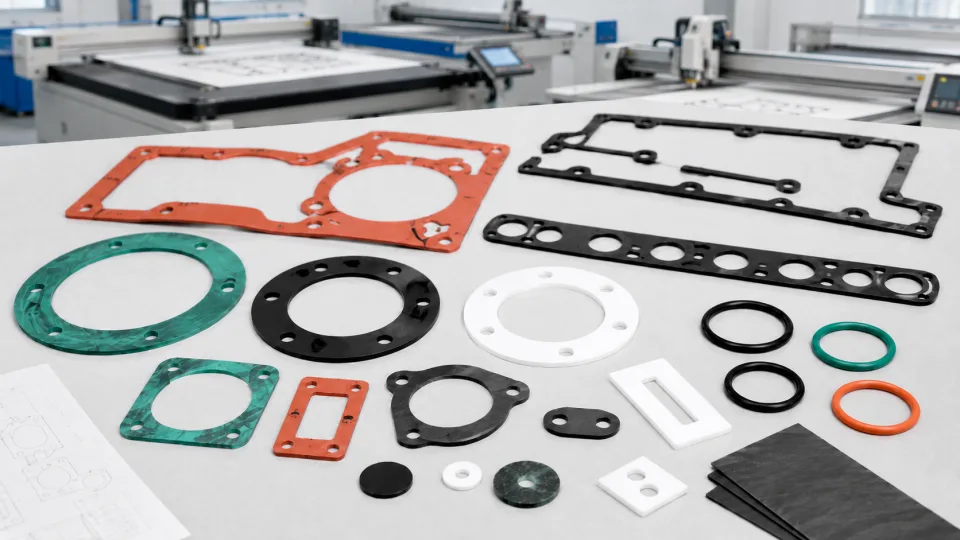

We cut flat gaskets, spacers, shims and technical parts from gasket sheets, rubber sheets, PTFE, graphite, plastics and special materials. We manufacture components based on DXF/DWG files, dimensional drawings, simple sketches or supplied samples.

Kształt: according to file or sample
Dane: DXF, DWG, drawing, sketch
Mode: CNC cutting

Any shapes of flat gaskets, spacers and technical parts.

Manufactured from gasket sheets, rubber sheets, PTFE, graphite, plastics and special materials.

Good solution for short runs, maintenance, non-standard dimensions and spare parts.

Typical applications

flange, cover, flat and valve gaskets
washers, shims, spacers and insulating elements
technical parts from rubber, PTFE, graphite and engineering plastics
short series of spare parts for maintenance and repairs

How to prepare data

the preferred file is a DXF/DWG with the component contour
you can send a dimensional drawing, sketch or photo with dimensions
specify thickness, material and quantity
for gaskets, provide the medium, temperature and compression

Process

How we handle an inquiry

01 Plik lub wzór

We accept DXF, DWG, drawings, sketches with dimensions or a physical sample of the gasket.

02 Materiał i grubość

We select the sheet material based on the medium, temperature, compression and required chemical or mechanical resistance.

03 Przygotowanie cięcia

We verify contours, holes, tolerances and the production order of parts on the CNC machine.

04 Pakowanie serii

We label produced parts, assemble the batch and prepare it for collection or shipment.

Materials

Material selection for medium and temperature

Gasket sheets

flat gaskets for flange connections, covers, valves and industrial applications

NBR / EPDM / FKM rubber

flat gaskets for oil, water, chemicals and industrial applications

PTFE

high chemical resistance, low coefficient of friction and stable performance in demanding media

Graphite

flange and high-temperature seals for valves and installations

Engineering plastics

shims, spacers, insulating elements and structural parts

Technical selection

Data needed for inquiry

If you do not have complete data, send a photo of the part, groove dimensions or operating conditions. We will help determine the missing parameters.

DXF/DWG file, dimensional drawing, sketch or component sample
thickness and intended material
medium, temperature, compression and required resistance properties
quantity, tolerances and intended application of the part
delivery deadline, if the part is required for urgent repair

FAQ

Frequently asked questions

Which file is best to send for quoting a CNC-cut gasket?

The best is a DXF or DWG file with the component contour. If no file is available, you can send a drawing, a sketch with dimensions, a photo or a sample gasket.

Which materials can flat gaskets be cut from?

Commonly used materials include rubber sheets NBR, EPDM and FKM, PTFE, graphite and engineering plastics. Material is selected based on the medium, temperature, compression and operating environment.

Is CNC cutting suitable for short runs?

Yes. CNC cutting is particularly practical for short runs, maintenance and non-standard shapes where preparing a dedicated die is not economical.

Can a gasket be made from an old sample?

Yes, but for a worn item it is advisable to confirm key mounting dimensions. An old gasket may be stretched, deformed or incomplete.

Offer inquiry

Need a quote or technical selection?

Send dimensions, medium and operating conditions. We will prepare material selection guidance and execution options.
