UTEC CNC Machines

UTEC CNC machines for producing technical seals, plastic components and for service and production implementations.

Maszyna CNC UTEC UT850-20 / UT850DT do produkcji dużych uszczelnień toczonych do średnicy 850 mm

Machines for seal production

UTEC CNC Machines

We offer UTEC CNC machines for producing technical seals and machining plastics. Model selection depends on seal diameter, production scale, tooling requirements and the planned deployment approach.

Typ: UTEC CNC machines
Scope: 250-1500 mm
System: UTEC / UTOSEAL
Sterowanie: FANUC Oi-TF

UTEC models

Select a machine for the production scope

The model list leads to detailed pages with technical parameters, application descriptions and inquiry data.

UT250-20

Compact CNC system for producing turned seals with an external diameter up to 250 mm.

Maks. średnica: 250 mm
Rewolwer: Pragati / Sauter / 8 positions
Oprawki: Pragati Fast Insert / Sauter VDI20

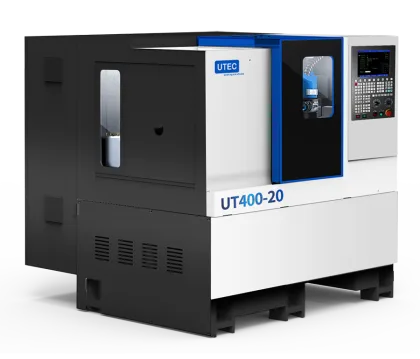

UT400-20

CNC system for producing turned seals with an external diameter up to 400 mm.

Maks. średnica: 400 mm
Rewolwer: Pragati / Sauter / 12 positions
Oprawki: Pragati Fast Insert / Sauter VDI20

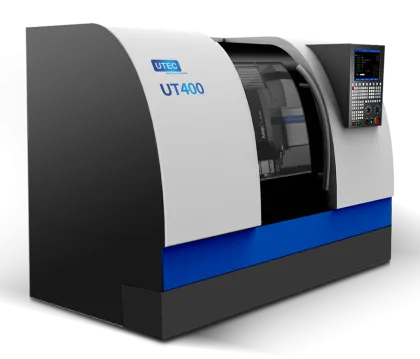

UT400 / UT400DT

Advanced configuration with Pragati / Sauter turret and Fast Insert / VDI20 holders.

Maks. średnica: 400 mm
Rewolwer: Pragati / Sauter / 12 positions
Oprawki: Pragati Fast Insert / Sauter VDI20

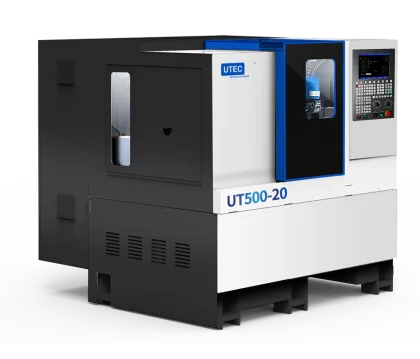

UT500-20

CNC machine extending the working range of UTEC systems to 500 mm diameter.

Maks. średnica: 500 mm
Rewolwer: Pragati / Sauter / 12 positions
Oprawki: Pragati Fast Insert / Sauter VDI20

UT850-20 / UT850DT

Machine for large seals and technical components with a range up to 850 mm.

Maks. średnica: 850 mm
Rewolwer: Pragati / Sauter / 12 positions
Oprawki: Pragati Fast Insert / Sauter VDI20

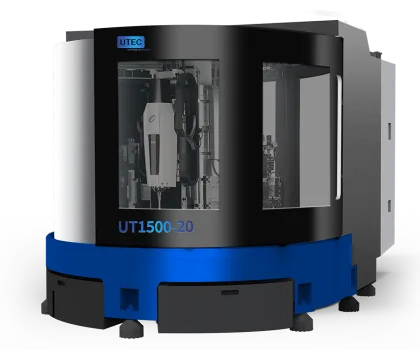

UT1500-20

The largest UTEC system for very large seals and technical components.

Maks. średnica: 1500 mm
Rewolwer: Pragati / Sauter / 12 positions
Oprawki: Pragati Fast Insert / Sauter VDI20

Configuration

Key features

Models for producing seals from small diameters to large-scale elements.

Configurations with UTOSEAL software, FANUC control and tooling systems.

Solutions for single-piece, service, short-series production and industrial deployments.

Ability to tailor the machine's capacity to the planned seal offering.

Technical data

UTEC models on offer

Model	Max. seal diameter	Go to
UTEC UT250-20	250 mm	View model
UTEC UT400-20	400 mm	View model
UTEC UT400 / UT400DT	400 mm	View model
UTEC UT500-20	500 mm	View model
UTEC UT850-20 / UT850DT	850 mm	View model
UTEC UT1500-20	1500 mm	View model

Model selection

range of seal and semi-finished part diameters
expected production scale and frequency of changeovers
type of tool turret and clamping system
requirements for software, tooling and deployment

Scope of implementation

CNC machine with technological equipment
software for design and program generation
tools, holders and auxiliary systems
support in preparing the inquiry and configuration

Inquiry

Data needed for selection

planned maximum seal dimension
materials and profiles intended for machining
quantity and production mode
expected scope of equipment and implementation

FAQ

Frequently asked questions

Which machine model should be chosen?

The starting point is the maximum seal diameter and the planned production type. For smaller ranges compact models are sufficient, while large seals require configurations with larger passage and axis range.

Are the machines intended only for seals?

The primary application is the production of turned seals, but the machines can also machine technical components made of engineering plastics within the limits of the given configuration.

How to prepare an inquiry?

It is best to provide the planned range of diameters, materials, profiles, production scale, required equipment and whether the deployment should support service production or continuous production.
