CNC Turned Seals

Seals manufactured on CNC machines to specific dimensions, profile and operating conditions.

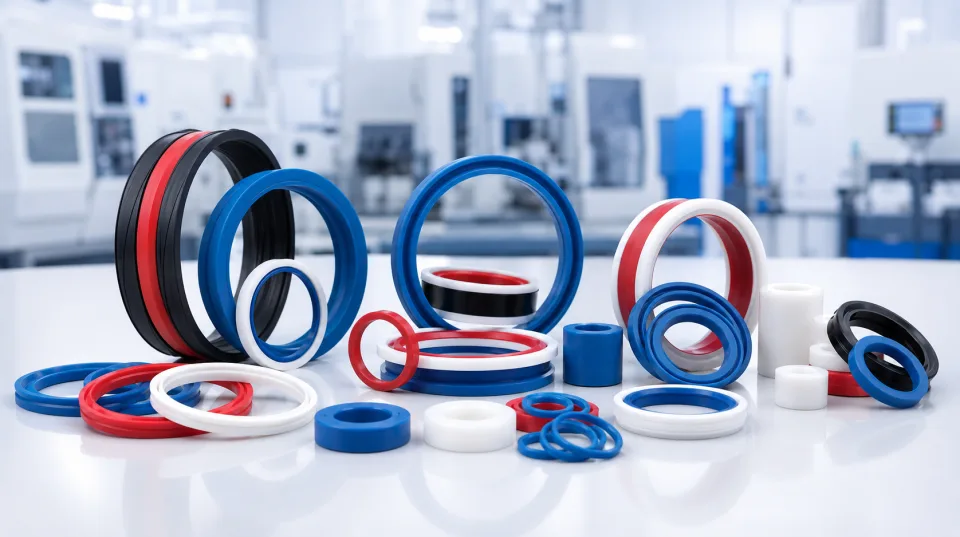

A set of CNC-turned technical seals in various sizes and colors, arranged on a light worktop against a blurred production hall background.

Custom solutions

CNC Turned Seals

Seals manufactured on CNC machines to specific dimensions, profile and operating conditions.

Production offering

CNC Turned Seals

We manufacture CNC turned seals to precise dimensions, profile and system operating conditions. CNC technology allows production without preparing a mold, so it is ideal for urgent repairs, prototypes, modernizations and production runs. In urgent cases we can prepare and dispatch seals the same day.

Średnice: from 4 mm to 750 mm
Specjalne zamówienia: up to 2000 mm after consultation
Mode: custom solutions
Materials: PU, PTFE, elastomers

Single and series production without mold costs.

Fast production of seals for repairs, prototypes and upgrades.

Profiles for hydraulics, pneumatics, rotary motion and special applications.

Capability to produce non-standard diameters and special designs after parameter agreement.

What we can produce

wiper rings, piston seals and rod seals
symmetric, static, rotary and mining seals
support rings and guide rings
profiles for hydraulic cylinders, pneumatics and rotary systems
non-standard sections matched to the existing groove
seals according to individual designs, requirements and technical documentation

When CNC is the best choice

when a non-standard size or profile not available as standard is required
for quick repairs where lead time is more important than tooling
for prototypes, upgrades and short production runs
when measurements require correction of seal geometry
when material and profile must be matched to the medium, pressure, temperature and type of motion

Process

How we handle an inquiry

01 Dimensional data

We collect shaft, cylinder and groove dimensions as well as information about the old profile or drawing.

02 Profile selection

We select the cross-section for the function: piston, rod, wiping, guiding, support or rotational motion.

03 Material and production

We select material based on medium, temperature, friction and pressure, then prepare the CNC program.

04 Inspection and dispatch

We check dimensions of the finished part and prepare the order for pickup or shipment.

Materials

Material selection for medium and temperature

high abrasion resistance and good performance in hydraulic power systems

PTFE

low friction coefficient, chemical resistance and wide temperature range

NBR / FKM / EPDM

elastomers selected for the medium, temperature and operating conditions

POM / PA

guide, support, sliding and structural components

Technical selection

Data needed for inquiry

If you do not have complete data, send a photo of the part, groove dimensions or operating conditions. We will help determine the missing parameters.

shaft and cylinder diameter and groove dimensions
type of operation: piston, rod, shaft, wiping, guiding or support
operating medium, temperature, pressure and movement speed
drawing, profile photo or worn part as a template
information whether the goal is a quick repair, prototype or production series

FAQ

Frequently asked questions

When should you choose a CNC turned seal?

CNC turning is recommended for non-standard sizes, urgent repairs, prototypes, modernizations and when standard seals do not solve the operational issue.

Is a mold required for a CNC turned seal?

No. The seal is produced directly on a CNC machine from a suitable semi-finished product, so there is no mold cost.

What materials can be used for turned seals?

Common materials include PU, PTFE, NBR, FKM, EPDM and structural materials for guide and support parts. Material is selected according to the medium, temperature, pressure and type of motion.

Can a replacement be made based on an old seal?

Yes, but it is best to combine measurement of the worn part with groove dimensions. A worn seal may be deformed, so copying it alone may not yield the correct specification.

Is rapid production of CNC turned seals possible?

Yes. In urgent cases seals can be produced and shipped the same day if material is available, technical data is complete and the profile does not require additional agreements.

Does Kragum produce seals larger than 750 mm?

The standard production range covers diameters from 4 mm to 750 mm. For special orders seals up to 2000 mm diameter can be produced after prior technical consultation.

Offer inquiry

Need a quote or technical selection?

Send dimensions, medium and operating conditions. We will prepare material selection guidance and execution options.

Request a quote
